FairMQTransportFactory Class Reference

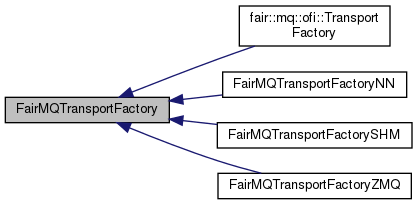

Inheritance diagram for FairMQTransportFactory:

Public Member Functions
	FairMQTransportFactory (const std::string &id)
auto	GetId () const -> const std::string
fair::mq::ChannelResource *	GetMemoryResource ()
	Get a pointer to the associated polymorphic memory resource.
virtual FairMQMessagePtr	CreateMessage ()=0
	Create empty FairMQMessage. More...
virtual FairMQMessagePtr	CreateMessage (const size_t size)=0
	Create new FairMQMessage of specified size. More...
virtual FairMQMessagePtr	CreateMessage (void *data, const size_t size, fairmq_free_fn *ffn, void *hint=nullptr)=0
	Create new FairMQMessage with user provided buffer and size. More...
virtual FairMQMessagePtr	CreateMessage (FairMQUnmanagedRegionPtr &unmanagedRegion, void *data, const size_t size, void *hint=0)=0
virtual FairMQSocketPtr	CreateSocket (const std::string &type, const std::string &name)=0
	Create a socket.
virtual FairMQPollerPtr	CreatePoller (const std::vector< FairMQChannel > &channels) const =0
	Create a poller for a single channel (all subchannels)
virtual FairMQPollerPtr	CreatePoller (const std::vector< FairMQChannel *> &channels) const =0
	Create a poller for specific channels.
virtual FairMQPollerPtr	CreatePoller (const std::unordered_map< std::string, std::vector< FairMQChannel >> &channelsMap, const std::vector< std::string > &channelList) const =0
	Create a poller for specific channels (all subchannels)
virtual FairMQUnmanagedRegionPtr	CreateUnmanagedRegion (const size_t size, FairMQRegionCallback callback=nullptr) const =0
virtual fair::mq::Transport	GetType () const =0
	Get transport type.
virtual void	Interrupt ()=0
virtual void	Resume ()=0
virtual void	Reset ()=0
template<typename T >
FairMQMessagePtr	NewSimpleMessage (const T &data)
template<std::size_t N>
FairMQMessagePtr	NewSimpleMessage (const char(&data)[N])
FairMQMessagePtr	NewSimpleMessage (const std::string &str)
template<typename T >
FairMQMessagePtr	NewStaticMessage (const T &data)
FairMQMessagePtr	NewStaticMessage (const std::string &str)

Static Public Member Functions
static auto	CreateTransportFactory (const std::string &type, const std::string &id="", const FairMQProgOptions *config=nullptr) -> std::shared_ptr< FairMQTransportFactory >
static void	FairMQNoCleanup (void *, void *)
template<typename T >
static void	FairMQSimpleMsgCleanup (void *, void *obj)

Constructor & Destructor Documentation

FairMQTransportFactory()

FairMQTransportFactory::FairMQTransportFactory

(

const std::string &

id

)

ctor

Parameters

id	Topology wide unique id, usually the device id.

Member Function Documentation

CreateMessage() [1/3]

virtual FairMQMessagePtr FairMQTransportFactory::CreateMessage ( )

pure virtual

Create empty FairMQMessage.

Returns

pointer to FairMQMessage

Implemented in FairMQTransportFactoryZMQ, FairMQTransportFactorySHM, and FairMQTransportFactoryNN.

CreateMessage() [2/3]

virtual FairMQMessagePtr FairMQTransportFactory::CreateMessage ( const size_t  size )

pure virtual

Create new FairMQMessage of specified size.

Parameters

size	message size

Returns

pointer to FairMQMessage

Implemented in FairMQTransportFactoryZMQ, FairMQTransportFactorySHM, and FairMQTransportFactoryNN.

CreateMessage() [3/3]

virtual FairMQMessagePtr FairMQTransportFactory::CreateMessage ( void *  data, const size_t  size, fairmq_free_fn *  ffn, void *  hint = nullptr  )

pure virtual

Create new FairMQMessage with user provided buffer and size.

Parameters

data	pointer to user provided buffer
size	size of the user provided buffer
ffn	callback, called when the message is transfered (and can be deleted)
obj	optional helper pointer that can be used in the callback

Returns

pointer to FairMQMessage

Implemented in FairMQTransportFactoryZMQ, FairMQTransportFactorySHM, and FairMQTransportFactoryNN.

---

The documentation for this class was generated from the following files:

• fairmq/FairMQTransportFactory.h
• fairmq/FairMQTransportFactory.cxx
