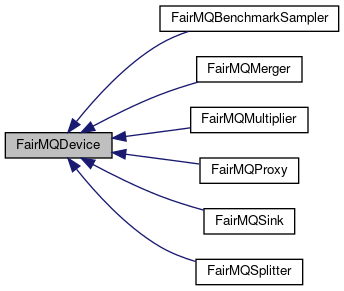

Inheritance diagram for FairMQDevice:

[legend]

Collaboration diagram for FairMQDevice:

Public Types
enum	Event { INIT_DEVICE, internal_DEVICE_READY, INIT_TASK, internal_READY, RUN, STOP, RESET_TASK, RESET_DEVICE, internal_IDLE, END, ERROR_FOUND }

enum	State { OK, Error, IDLE, INITIALIZING_DEVICE, DEVICE_READY, INITIALIZING_TASK, READY, RUNNING, RESETTING_TASK, RESETTING_DEVICE, EXITING }

Public Member Functions
	FairMQDevice ()
	Default constructor.

	FairMQDevice (fair::mq::ProgOptions &config)
	Constructor with external fair::mq::ProgOptions.

	FairMQDevice (const fair::mq::tools::Version version)
	Constructor that sets the version.

	FairMQDevice (fair::mq::ProgOptions &config, const fair::mq::tools::Version version)
	Constructor that sets the version and external fair::mq::ProgOptions.

	FairMQDevice (const FairMQDevice &)=delete
	Copy constructor (disabled)

FairMQDevice	operator= (const FairMQDevice &)=delete
	Assignment operator (disabled)

virtual	~FairMQDevice ()
	Default destructor.

virtual void	LogSocketRates ()
	Outputs the socket transfer rates.

template<typename Serializer , typename DataType , typename... Args>
void	Serialize (FairMQMessage &msg, DataType &&data, Args &&... args) const

template<typename Deserializer , typename DataType , typename... Args>
void	Deserialize (FairMQMessage &msg, DataType &&data, Args &&... args) const

int	Send (FairMQMessagePtr &msg, const std::string &channel, const int index=0, int sndTimeoutInMs=-1)

int	Receive (FairMQMessagePtr &msg, const std::string &channel, const int index=0, int rcvTimeoutInMs=-1)

int64_t	Send (FairMQParts &parts, const std::string &channel, const int index=0, int sndTimeoutInMs=-1)

int64_t	Receive (FairMQParts &parts, const std::string &channel, const int index=0, int rcvTimeoutInMs=-1)

auto	Transport () const -> FairMQTransportFactory *
	Getter for default transport factory.

template<typename... Args>
FairMQMessagePtr	NewMessage (Args &&... args)

template<typename... Args>
FairMQMessagePtr	NewMessageFor (const std::string &channel, int index, Args &&... args)

template<typename T >
FairMQMessagePtr	NewStaticMessage (const T &data)

template<typename T >
FairMQMessagePtr	NewStaticMessageFor (const std::string &channel, int index, const T &data)

template<typename T >
FairMQMessagePtr	NewSimpleMessage (const T &data)

template<typename T >
FairMQMessagePtr	NewSimpleMessageFor (const std::string &channel, int index, const T &data)

FairMQUnmanagedRegionPtr	NewUnmanagedRegion (const size_t size, FairMQRegionCallback callback=nullptr, const std::string &path="", int flags=0)

FairMQUnmanagedRegionPtr	NewUnmanagedRegion (const size_t size, const int64_t userFlags, FairMQRegionCallback callback=nullptr, const std::string &path="", int flags=0)

FairMQUnmanagedRegionPtr	NewUnmanagedRegionFor (const std::string &channel, int index, const size_t size, FairMQRegionCallback callback=nullptr, const std::string &path="", int flags=0)

FairMQUnmanagedRegionPtr	NewUnmanagedRegionFor (const std::string &channel, int index, const size_t size, const int64_t userFlags, FairMQRegionCallback callback=nullptr, const std::string &path="", int flags=0)

template<typename ... Ts>
FairMQPollerPtr	NewPoller (const Ts &... inputs)

FairMQPollerPtr	NewPoller (const std::vector< FairMQChannel *> &channels)

std::shared_ptr< FairMQTransportFactory >	AddTransport (const fair::mq::Transport transport)

void	SetConfig (fair::mq::ProgOptions &config)
	Assigns config to the device.

fair::mq::ProgOptions *	GetConfig () const
	Get pointer to the config.

template<typename T >
void	OnData (const std::string &channelName, bool(T::*memberFunction)(FairMQMessagePtr &msg, int index))

void	OnData (const std::string &channelName, InputMsgCallback callback)

template<typename T >
void	OnData (const std::string &channelName, bool(T::*memberFunction)(FairMQParts &parts, int index))

void	OnData (const std::string &channelName, InputMultipartCallback callback)

FairMQChannel &	GetChannel (const std::string &channelName, const int index=0)

virtual void	RegisterChannelEndpoints ()

bool	RegisterChannelEndpoint (const std::string &channelName, uint16_t minNumSubChannels=1, uint16_t maxNumSubChannels=1)

void	PrintRegisteredChannels ()

void	SetId (const std::string &id)

std::string	GetId ()

const fair::mq::tools::Version	GetVersion () const

void	SetNumIoThreads (int numIoThreads)

int	GetNumIoThreads () const

void	SetNetworkInterface (const std::string &networkInterface)

std::string	GetNetworkInterface () const

void	SetDefaultTransport (const std::string &name)

std::string	GetDefaultTransport () const

void	SetInitTimeoutInS (int initTimeoutInS)

int	GetInitTimeoutInS () const

void	SetTransport (const std::string &transport)

std::string	GetTransportName () const
	Gets the default transport name.

void	SetRawCmdLineArgs (const std::vector< std::string > &args)

std::vector< std::string >	GetRawCmdLineArgs () const

void	RunStateMachine ()

template<typename Rep , typename Period >
bool	WaitFor (std::chrono::duration< Rep, Period > const &duration)

void	AddChannel (const std::string &name, FairMQChannel &&channel)

Public Attributes
std::unordered_map< std::string, std::vector< FairMQChannel > >	fChannels
	Device channels.

std::unique_ptr< fair::mq::ProgOptions >	fInternalConfig
	Internal program options configuration.

fair::mq::ProgOptions *	fConfig
	Pointer to config (internal or external)

Protected Member Functions
virtual void	Init ()
	Additional user initialization (can be overloaded in child classes). Prefer to use InitTask().

virtual void	Bind ()

virtual void	Connect ()

virtual void	InitTask ()
	Task initialization (can be overloaded in child classes)

virtual void	Run ()
	Runs the device (to be overloaded in child classes)

virtual void	PreRun ()
	Called in the RUNNING state once before executing the Run()/ConditionalRun() method.

virtual bool	ConditionalRun ()
	Called during RUNNING state repeatedly until it returns false or device state changes.

virtual void	PostRun ()
	Called in the RUNNING state once after executing the Run()/ConditionalRun() method.

virtual void	Pause () __attribute__((deprecated("PAUSE state is removed. This method is never called. To pause Run

Protected Attributes
std::shared_ptr< FairMQTransportFactory >	fTransportFactory
	Default transport factory.

std::unordered_map< fair::mq::Transport, std::shared_ptr< FairMQTransportFactory > >	fTransports
	Container for transports.

std::string	fId
	Device ID.

virtual void go to READY with STOP transition and back to RUNNING with RUN to	resume

Friends
class	FairMQChannel

Member Function Documentation

◆ AddTransport()

shared_ptr< FairMQTransportFactory > FairMQDevice::AddTransport ( const fair::mq::Transport transport )

Adds a transport to the device if it doesn't exist

Parameters

transport Transport string ("zeromq"/"nanomsg"/"shmem")

◆ Receive() [1/2]

int FairMQDevice::Receive	(	FairMQMessagePtr &	msg,
		const std::string &	channel,
		const int	index = `0`,
		int	rcvTimeoutInMs = `-1`
	)

inline

Shorthand method to receive msg on chan at index i

Parameters

msg	message reference
chan	channel name
i	channel index
rcvTimeoutInMs	receive timeout in ms, -1 will wait forever (or until interrupt (e.g. via state change)), 0 will not wait (return immediately if cannot receive)

Returns: Number of bytes that have been received. -2 if reading from the queue was not possible or timed out. -1 if there was an error.

◆ Receive() [2/2]

int64_t FairMQDevice::Receive	(	FairMQParts &	parts,
		const std::string &	channel,
		const int	index = `0`,
		int	rcvTimeoutInMs = `-1`
	)

inline

Shorthand method to receive FairMQParts on chan at index i

Parameters

parts	parts reference
chan	channel name
i	channel index
rcvTimeoutInMs	receive timeout in ms, -1 will wait forever (or until interrupt (e.g. via state change)), 0 will not wait (return immediately if cannot receive)

Returns: Number of bytes that have been received. -2 if reading from the queue was not possible or timed out. -1 if there was an error.

◆ Send() [1/2]

int FairMQDevice::Send	(	FairMQMessagePtr &	msg,
		const std::string &	channel,
		const int	index = `0`,
		int	sndTimeoutInMs = `-1`
	)

inline

Shorthand method to send msg on chan at index i

Parameters

msg	message reference
chan	channel name
i	channel index
sndTimeoutInMs	send timeout in ms, -1 will wait forever (or until interrupt (e.g. via state change)), 0 will not wait (return immediately if cannot send)

Returns: Number of bytes that have been queued. -2 If queueing was not possible or timed out. -1 if there was an error.

◆ Send() [2/2]

int64_t FairMQDevice::Send	(	FairMQParts &	parts,
		const std::string &	channel,
		const int	index = `0`,
		int	sndTimeoutInMs = `-1`
	)

inline

Shorthand method to send FairMQParts on chan at index i

Parameters

parts	parts reference
chan	channel name
i	channel index
sndTimeoutInMs	send timeout in ms, -1 will wait forever (or until interrupt (e.g. via state change)), 0 will not wait (return immediately if cannot send)

Returns: Number of bytes that have been queued. -2 If queueing was not possible or timed out. -1 if there was an error.

◆ SetTransport()

void FairMQDevice::SetTransport ( const std::string & transport )

inline

Sets the default transport for the device

Parameters

transport Transport string ("zeromq"/"nanomsg"/"shmem")

◆ WaitFor()

template<typename Rep , typename Period >

bool FairMQDevice::WaitFor ( std::chrono::duration< Rep, Period > const & duration )

inline

Wait for the supplied amount of time or for interruption. If interrupted, returns false, otherwise true.

Parameters

duration wait duration

Member Data Documentation

◆ resume

virtual void go to READY with STOP transition and back to RUNNING with RUN to FairMQDevice::resume

protected

Initial value:

{}

    virtual void ResetTask() {}

    virtual void Reset() {}
  public:
    bool ChangeState(const fair::mq::Transition transition) { return fStateMachine.ChangeState(transition); }
    bool ChangeState(const std::string& transition) { return fStateMachine.ChangeState(fair::mq::GetTransition(transition)); }
    bool ChangeState(const int transition) __attribute__((deprecated("Use ChangeState(const fair::mq::Transition transition).")))

The documentation for this class was generated from the following files:

fairmq/FairMQDevice.h
fairmq/FairMQDevice.cxx
