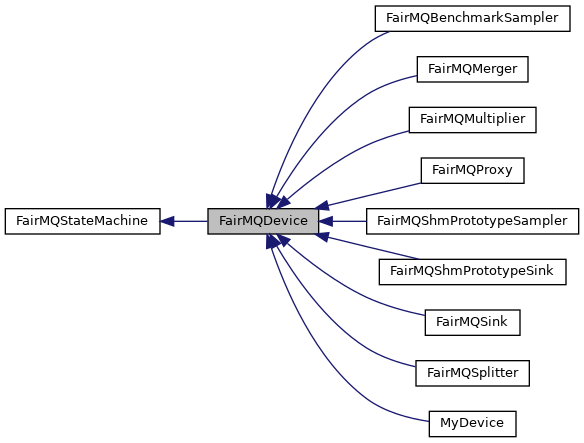

Inheritance diagram for FairMQDevice:

[legend]

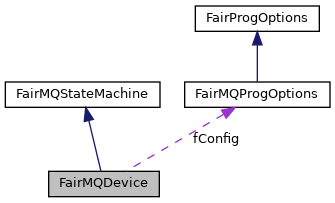

Collaboration diagram for FairMQDevice:

Public Member Functions
	FairMQDevice ()
	Default constructor.

	FairMQDevice (const fair::mq::tools::Version version)
	Constructor that sets the version.

	FairMQDevice (const FairMQDevice &)=delete
	Copy constructor (disabled)

FairMQDevice	operator= (const FairMQDevice &)=delete
	Assignment operator (disabled)

virtual	~FairMQDevice ()
	Default destructor.

void	CatchSignals ()
	Catches interrupt signals (SIGINT, SIGTERM)

virtual void	LogSocketRates ()
	Outputs the socket transfer rates.

void	SortChannel (const std::string &name, const bool reindex=true)

void	PrintChannel (const std::string &name)

template<typename Serializer , typename DataType , typename... Args>
void	Serialize (FairMQMessage &msg, DataType &&data, Args &&... args) const

template<typename Deserializer , typename DataType , typename... Args>
void	Deserialize (FairMQMessage &msg, DataType &&data, Args &&... args) const

int	Send (FairMQMessagePtr &msg, const std::string &chan, const int i=0) const

int	Receive (FairMQMessagePtr &msg, const std::string &chan, const int i=0) const

int	Send (FairMQMessagePtr &msg, const std::string &chan, const int i, int sndTimeoutInMs) const

int	Receive (FairMQMessagePtr &msg, const std::string &chan, const int i, int rcvTimeoutInMs) const

int	SendAsync (FairMQMessagePtr &msg, const std::string &chan, const int i=0) const

int	ReceiveAsync (FairMQMessagePtr &msg, const std::string &chan, const int i=0) const

int64_t	Send (FairMQParts &parts, const std::string &chan, const int i=0) const

int64_t	Receive (FairMQParts &parts, const std::string &chan, const int i=0) const

int64_t	Send (FairMQParts &parts, const std::string &chan, const int i, int sndTimeoutInMs) const

int64_t	Receive (FairMQParts &parts, const std::string &chan, const int i, int rcvTimeoutInMs) const

int64_t	SendAsync (FairMQParts &parts, const std::string &chan, const int i=0) const

int64_t	ReceiveAsync (FairMQParts &parts, const std::string &chan, const int i=0) const

auto	Transport () const -> const FairMQTransportFactory *
	Getter for default transport factory.

template<typename... Args>
FairMQMessagePtr	NewMessage (Args &&... args) const

template<typename... Args>
FairMQMessagePtr	NewMessageFor (const std::string &channel, int index, Args &&... args) const

template<typename T >
FairMQMessagePtr	NewStaticMessage (const T &data) const

template<typename T >
FairMQMessagePtr	NewStaticMessageFor (const std::string &channel, int index, const T &data) const

template<typename T >
FairMQMessagePtr	NewSimpleMessage (const T &data) const

template<typename T >
FairMQMessagePtr	NewSimpleMessageFor (const std::string &channel, int index, const T &data) const

FairMQUnmanagedRegionPtr	NewUnmanagedRegion (const size_t size)

FairMQUnmanagedRegionPtr	NewUnmanagedRegionFor (const std::string &channel, int index, const size_t size, FairMQRegionCallback callback=nullptr)

template<typename ... Ts>
FairMQPollerPtr	NewPoller (const Ts &... inputs)

FairMQPollerPtr	NewPoller (const std::vector< const FairMQChannel *> &channels)

void	WaitForInitialValidation ()
	Waits for the first initialization run to finish.

std::shared_ptr< FairMQTransportFactory >	AddTransport (const fair::mq::Transport transport)

void	SetTransport (const std::string &transport="zeromq")

void	SetConfig (FairMQProgOptions &config)

const FairMQProgOptions *	GetConfig () const

template<typename T >
void	OnData (const std::string &channelName, bool(T::*memberFunction)(FairMQMessagePtr &msg, int index))

void	OnData (const std::string &channelName, InputMsgCallback callback)

template<typename T >
void	OnData (const std::string &channelName, bool(T::*memberFunction)(FairMQParts &parts, int index))

void	OnData (const std::string &channelName, InputMultipartCallback callback)

const FairMQChannel &	GetChannel (const std::string &channelName, const int index=0) const

virtual void	RegisterChannelEndpoints ()

bool	RegisterChannelEndpoint (const std::string &channelName, uint16_t minNumSubChannels=1, uint16_t maxNumSubChannels=1)

void	PrintRegisteredChannels ()

void	SetId (const std::string &id)

std::string	GetId ()

const fair::mq::tools::Version	GetVersion () const

void	SetNumIoThreads (int numIoThreads)

int	GetNumIoThreads () const

void	SetPortRangeMin (int portRangeMin)

int	GetPortRangeMin () const

void	SetPortRangeMax (int portRangeMax)

int	GetPortRangeMax () const

void	SetNetworkInterface (const std::string &networkInterface)

std::string	GetNetworkInterface () const

void	SetDefaultTransport (const std::string &name)

std::string	GetDefaultTransport () const

void	SetInitializationTimeoutInS (int initializationTimeoutInS)

int	GetInitializationTimeoutInS () const

Public Member Functions inherited from FairMQStateMachine
int	GetInterfaceVersion () const

bool	ChangeState (int event)

bool	ChangeState (const std::string &event)

void	WaitForEndOfState (int event)

void	WaitForEndOfState (const std::string &event)

bool	WaitForEndOfStateForMs (int event, int durationInMs)

bool	WaitForEndOfStateForMs (const std::string &event, int durationInMs)

void	SubscribeToStateChange (const std::string &key, std::function< void(const State)> callback)

void	UnsubscribeFromStateChange (const std::string &key)

void	CallStateChangeCallbacks (const State state) const

std::string	GetCurrentStateName () const

int	GetCurrentState () const

bool	CheckCurrentState (int state) const

bool	CheckCurrentState (std::string state) const

bool	Terminated ()

Static Public Member Functions
static bool	SortSocketsByAddress (const FairMQChannel &lhs, const FairMQChannel &rhs)

Public Attributes
std::unordered_map< std::string, std::vector< FairMQChannel > >	fChannels
	Device channels.

FairMQProgOptions *	fConfig
	Program options configuration.

Protected Member Functions
virtual void	Init ()

virtual void	InitTask ()

virtual void	Run ()

virtual void	PreRun ()

virtual bool	ConditionalRun ()

virtual void	PostRun ()

virtual void	Pause ()

virtual void	ResetTask ()

virtual void	Reset ()

Protected Attributes
std::shared_ptr< FairMQTransportFactory >	fTransportFactory
	Default transport factory.

std::unordered_map< fair::mq::Transport, std::shared_ptr< FairMQTransportFactory > >	fTransports
	Container for transports.

std::string	fId
	Device ID.

int	fNumIoThreads
	Number of ZeroMQ I/O threads.

Friends
class	FairMQChannel

Additional Inherited Members
Public Types inherited from FairMQStateMachine
enum	Event { INIT_DEVICE, internal_DEVICE_READY, INIT_TASK, internal_READY, RUN, PAUSE, STOP, RESET_TASK, RESET_DEVICE, internal_IDLE, END, ERROR_FOUND }

enum	State { OK, Error, IDLE, INITIALIZING_DEVICE, DEVICE_READY, INITIALIZING_TASK, READY, RUNNING, PAUSED, RESETTING_TASK, RESETTING_DEVICE, EXITING }

Member Function Documentation

◆ AddTransport()

shared_ptr< FairMQTransportFactory > FairMQDevice::AddTransport ( const fair::mq::Transport transport )

Adds a transport to the device if it doesn't exist

Parameters

transport Transport string ("zeromq"/"nanomsg"/"shmem")

◆ ConditionalRun()

bool FairMQDevice::ConditionalRun ( )

protectedvirtual

Called during RUNNING state repeatedly until it returns false or device state changes Executed in a worker thread

◆ Init()

void FairMQDevice::Init ( )

protectedvirtual

Additional user initialization (can be overloaded in child classes). Prefer to use InitTask(). Executed in a worker thread

Reimplemented in FairMQShmPrototypeSampler, and FairMQShmPrototypeSink.

◆ InitTask()

void FairMQDevice::InitTask ( )

protectedvirtual

Task initialization (can be overloaded in child classes) Executed in a worker thread

Reimplemented in FairMQBenchmarkSampler, FairMQSink, FairMQMerger, FairMQSplitter, FairMQProxy, and FairMQMultiplier.

◆ Pause()

void FairMQDevice::Pause ( )

protectedvirtual

Handles the PAUSE state Executed in a worker thread

◆ PostRun()

void FairMQDevice::PostRun ( )

protectedvirtual

Called in the RUNNING state once after executing the Run()/ConditionalRun() method Executed in a worker thread

Reimplemented in FairMQBenchmarkSampler.

◆ PreRun()

void FairMQDevice::PreRun ( )

protectedvirtual

Called in the RUNNING state once before executing the Run()/ConditionalRun() method Executed in a worker thread

Reimplemented in FairMQBenchmarkSampler.

◆ PrintChannel()

void FairMQDevice::PrintChannel ( const std::string & name )

Prints channel configuration

Parameters

name	Name of the channel

◆ Receive() [1/2]

int FairMQDevice::Receive	(	FairMQMessagePtr &	msg,
		const std::string &	chan,
		const int	i,
		int	rcvTimeoutInMs
	)		const

inline

Shorthand method to receive msg on chan at index i

Parameters

msg	message reference
chan	channel name
i	channel index

Returns: Number of bytes that have been received. -2 If reading from the queue was not possible or timed out. In case of errors, returns -1.

◆ Receive() [2/2]

int64_t FairMQDevice::Receive	(	FairMQParts &	parts,
		const std::string &	chan,
		const int	i,
		int	rcvTimeoutInMs
	)		const

inline

Shorthand method to receive FairMQParts on chan at index i

Parameters

parts	parts reference
chan	channel name
i	channel index

Returns: Number of bytes that have been received. -2 If reading from the queue was not possible or timed out. In case of errors, returns -1.

◆ ReceiveAsync() [1/2]

int FairMQDevice::ReceiveAsync	(	FairMQMessagePtr &	msg,
		const std::string &	chan,
		const int	i = `0`
	)		const

inline

Shorthand method to receive msg on chan at index i without blocking

Parameters

msg	message reference
chan	channel name
i	channel index

Returns: Number of bytes that have been received. -2 If reading from the queue was not possible or timed out. In case of errors, returns -1.

◆ ReceiveAsync() [2/2]

int64_t FairMQDevice::ReceiveAsync	(	FairMQParts &	parts,
		const std::string &	chan,
		const int	i = `0`
	)		const

inline

Shorthand method to receive FairMQParts on chan at index i without blocking

Parameters

parts	parts reference
chan	channel name
i	channel index

Returns: Number of bytes that have been received. -2 If reading from the queue was not possible or timed out. In case of errors, returns -1.

◆ Reset()

void FairMQDevice::Reset ( )

protectedvirtual

Resets the device (can be overloaded in child classes) Executed in a worker thread

◆ ResetTask()

void FairMQDevice::ResetTask ( )

protectedvirtual

Resets the user task (to be overloaded in child classes) Executed in a worker thread

◆ Run()

void FairMQDevice::Run ( )

protectedvirtual

Runs the device (to be overloaded in child classes) Executed in a worker thread

Reimplemented in FairMQBenchmarkSampler, FairMQSink, FairMQShmPrototypeSampler, FairMQShmPrototypeSink, FairMQMerger, and FairMQProxy.

◆ Send() [1/2]

int FairMQDevice::Send	(	FairMQMessagePtr &	msg,
		const std::string &	chan,
		const int	i,
		int	sndTimeoutInMs
	)		const

inline

Shorthand method to send msg on chan at index i

Parameters

msg	message reference
chan	channel name
i	channel index

Returns: Number of bytes that have been queued. -2 If queueing was not possible or timed out. In case of errors, returns -1.

◆ Send() [2/2]

int64_t FairMQDevice::Send	(	FairMQParts &	parts,
		const std::string &	chan,
		const int	i,
		int	sndTimeoutInMs
	)		const

inline

Shorthand method to send FairMQParts on chan at index i

Parameters

parts	parts reference
chan	channel name
i	channel index

Returns: Number of bytes that have been queued. -2 If queueing was not possible or timed out. In case of errors, returns -1.

◆ SendAsync() [1/2]

int FairMQDevice::SendAsync	(	FairMQMessagePtr &	msg,
		const std::string &	chan,
		const int	i = `0`
	)		const

inline

Shorthand method to send msg on chan at index i without blocking

Parameters

msg	message reference
chan	channel name
i	channel index

Returns: Number of bytes that have been queued. -2 If queueing was not possible or timed out. In case of errors, returns -1.

◆ SendAsync() [2/2]

int64_t FairMQDevice::SendAsync	(	FairMQParts &	parts,
		const std::string &	chan,
		const int	i = `0`
	)		const

inline

Shorthand method to send FairMQParts on chan at index i without blocking

Parameters

parts	parts reference
chan	channel name
i	channel index

Returns: Number of bytes that have been queued. -2 If queueing was not possible or timed out. In case of errors, returns -1.

◆ SetTransport()

void FairMQDevice::SetTransport ( const std::string & transport = "zeromq" )

Sets the default transport for the device

Parameters

transport Transport string ("zeromq"/"nanomsg"/"shmem")

◆ SortChannel()

void FairMQDevice::SortChannel	(	const std::string &	name,
		const bool	reindex = `true`
	)

Sorts a channel by address, with optional reindexing of the sorted values

Parameters

name	Channel name
reindex	Should reindexing be done

◆ SortSocketsByAddress()

bool FairMQDevice::SortSocketsByAddress	(	const FairMQChannel &	lhs,
		const FairMQChannel &	rhs
	)

static

Implements the sort algorithm used in SortChannel()

Parameters

lhs	Right hand side value for comparison
rhs	Left hand side value for comparison

The documentation for this class was generated from the following files:

fairmq/FairMQDevice.h
fairmq/FairMQDevice.cxx

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Member Function Documentation

◆ AddTransport()

◆ ConditionalRun()

◆ Init()

◆ InitTask()

◆ Pause()

◆ PostRun()

◆ PreRun()

◆ PrintChannel()

◆ Receive() [1/2]

◆ Receive() [2/2]

◆ ReceiveAsync() [1/2]

◆ ReceiveAsync() [2/2]

◆ Reset()

◆ ResetTask()

◆ Run()

◆ Send() [1/2]

◆ Send() [2/2]

◆ SendAsync() [1/2]

◆ SendAsync() [2/2]

◆ SetTransport()

◆ SortChannel()

◆ SortSocketsByAddress()
